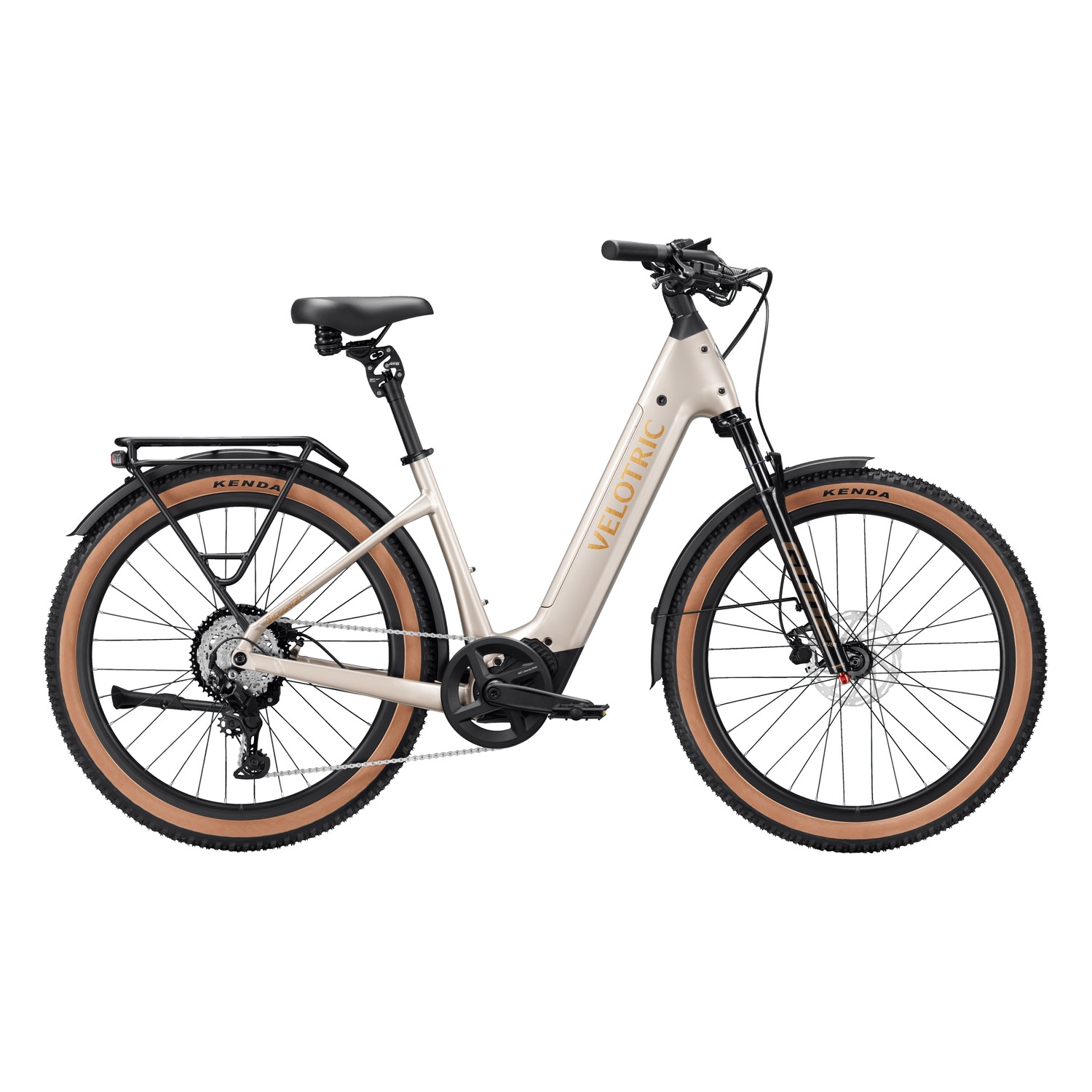

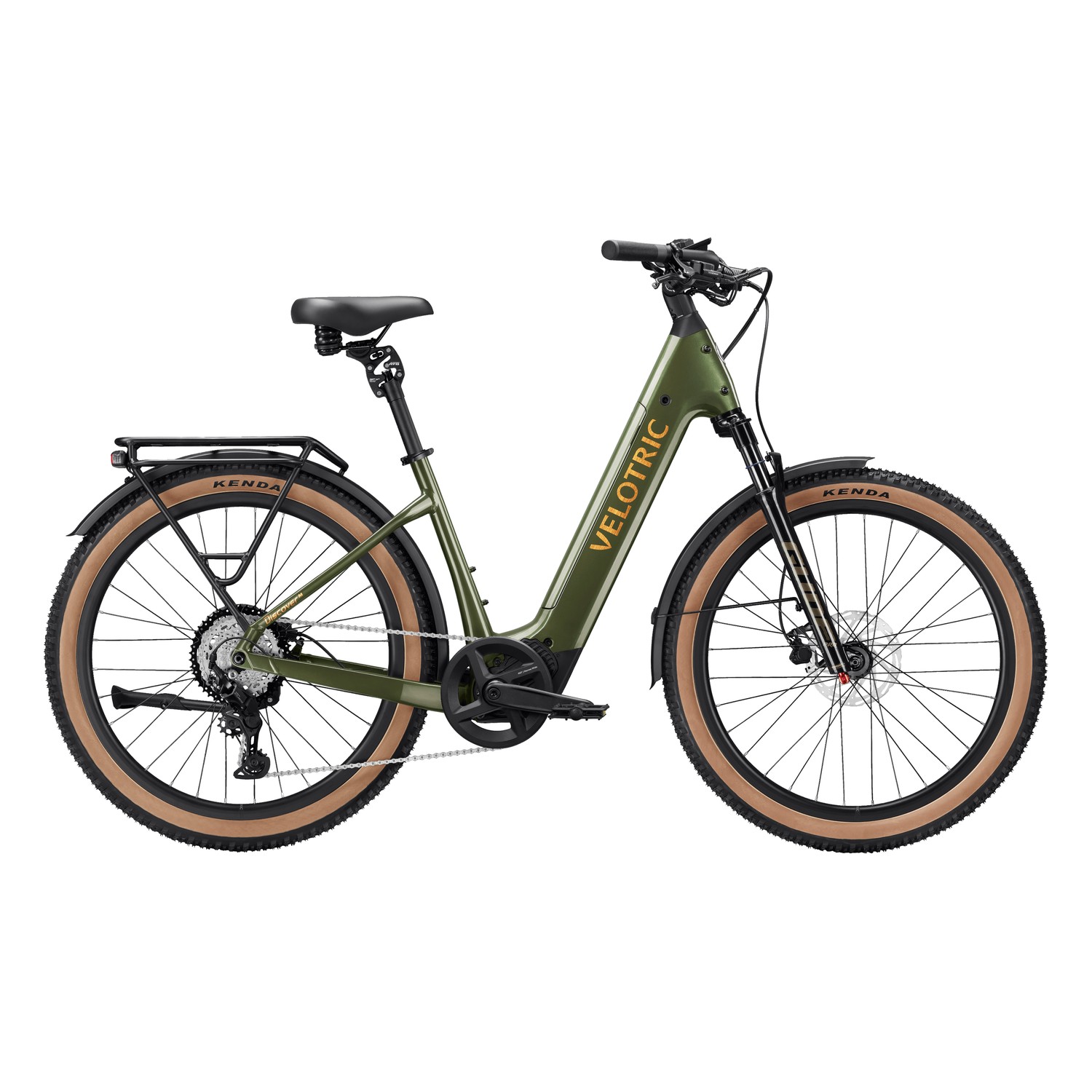

Velotric Discover M Ebike
The Velotric Discover M is a mid-drive commuter ebike for riders who want assist that feels like a regular bike, on long climbs, gravel and pavement.
Velotric’s VeloCore mid-drive motor is rated 500W, peaks at 960W and delivers 100 Nm of torque through a Shimano CUES 9-speed drivetrain. A 48V 16.7Ah battery gives up to 95 miles on pedal assist, by Velotric’s estimate.
Tektro hydraulic disc brakes, an 80 mm air suspension fork with lockout, a suspension seatpost and 27.5 x 2.4 in Kenda puncture-resistant tires keep it steady. Velotric rates it for 440 lbs in total, with 66 lbs on the rear rack.
Fenders, a rear rack, a 500 lumen headlight, turn signals and Auto Mode, which adjusts pedal assist on hills by itself, come standard. UL 2849 certified, with a UL 2271 certified battery. Two sizes fit riders from 5 ft 2 in to 6 ft 7 in with the suspension seatpost.
Technical
- Motor: VeloCore mid-drive, 48V 500W, 960W peak
- Torque: 100 Nm
- Battery: 48V 16.7Ah (801.6Wh), Samsung or LG 21700 cells, IPX7, UL 2271 certified
- Range: up to 95 miles on pedal assist, 70 miles on throttle, manufacturer estimate
- Top speed: 20 mph by default, adjustable from 12 to 28 mph
- E-bike class: switchable between Class 1, 2 and 3
- Payload: 440 lbs total
- Rear rack load: 66 lbs
- Bike weight: 60 lbs, without fenders, kickstand or pedals
- Charger: 48V 3A fast charger
- Water resistance: IPX6 for the whole bike
- Certification: UL 2849 and UL 2271, ISO 4210
Performance
- Sensor: torque and cadence, switchable with one click
- Pedal assist: 4 riding modes plus Auto Mode and Ride Tuning
- Auto Mode: adjusts pedal assist to the slope by itself
- Throttle: removable
- Walk mode: 2.9 mph
- Gearing: Shimano CUES 9-speed, 11-46T, KMC eGlide chain
- Chainring: 46T, 170 mm aluminum cranks
- Brakes: Tektro hydraulic disc, 180 mm front and rear
- Suspension: air fork with 80 mm travel and lockout, plus a suspension seatpost
- Frame: triple-butted aluminum
- Tires: Kenda 27.5 x 2.4 in puncture-resistant
- Display: 3.5 in full-color display with Bluetooth and NFC, adjustable angle
- Lighting: 500 lumen headlight, rear light with brake light and turn signals, built into the rear rack
- Rear rack: MIK HD compatible alloy
- Fenders: aluminum, front and rear, full coverage
- Kickstand: rear mount
- USB-C charging port: yes
- Anti-theft: Apple Find My and Google Find Hub, NFC card unlock
Size And Fit
- Frame sizes: Regular and Large
- Rider height, Regular: 5 ft 2 in to 5 ft 11 in with the suspension seatpost, 4 ft 11 in to 5 ft 9 in without
- Rider height, Large: 5 ft 9 in to 6 ft 7 in with the suspension seatpost, 5 ft 6 in to 6 ft 4 in without
- Total length: 71.3 in
- Wheelbase: 43.8 in
- Standover height: 15.7 in Regular, 15.3 in Large
- Saddle height: 33.0 to 39.2 in Regular, 35.8 to 41.9 in Large
- Handlebar height: 43.7 in
- Reach: 14.7 in
- Handlebar width: 26.8 in Regular, 27.6 in Large
Velotric also offers a standard seatpost for shorter riders and a Bike Essential Kit for the Discover series.
