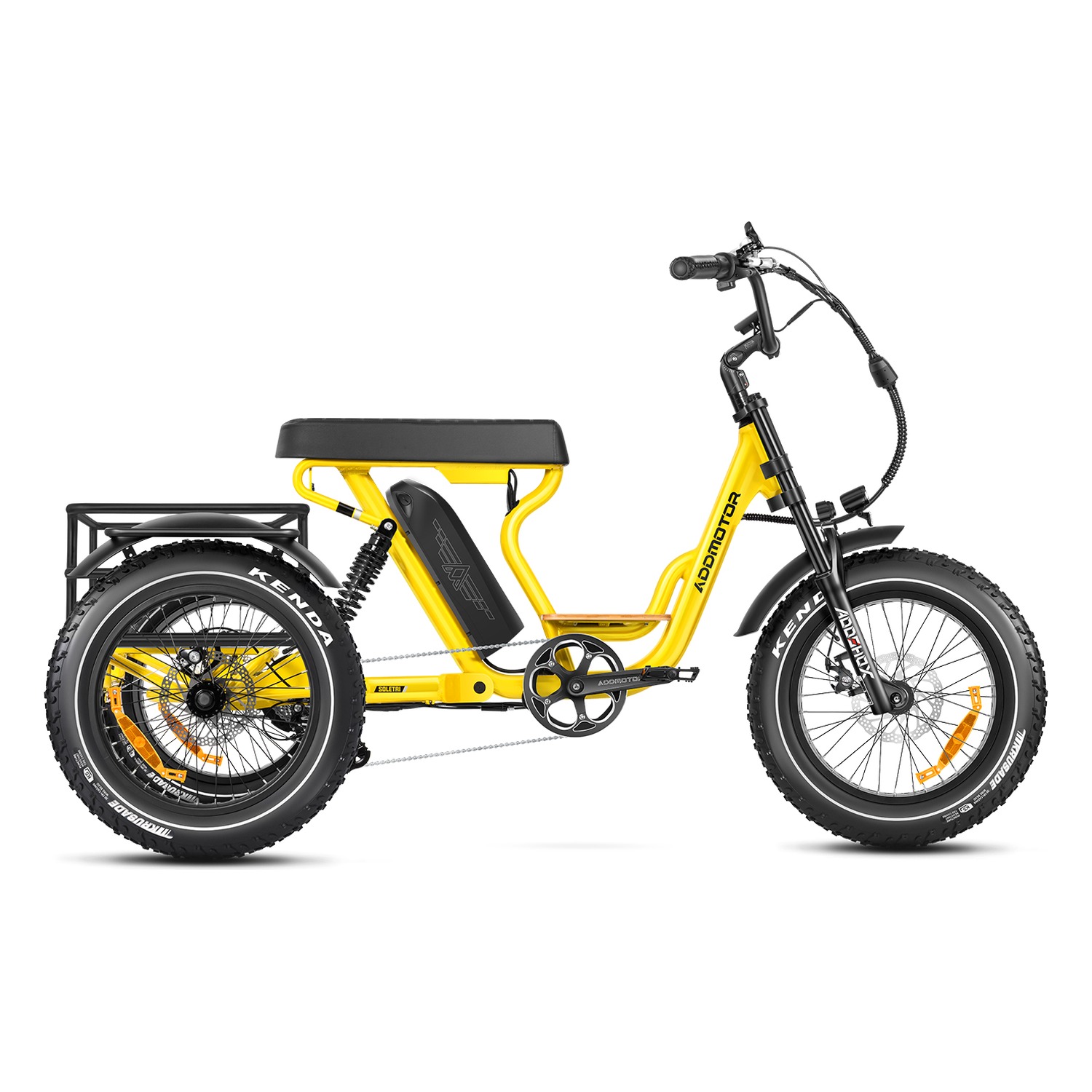

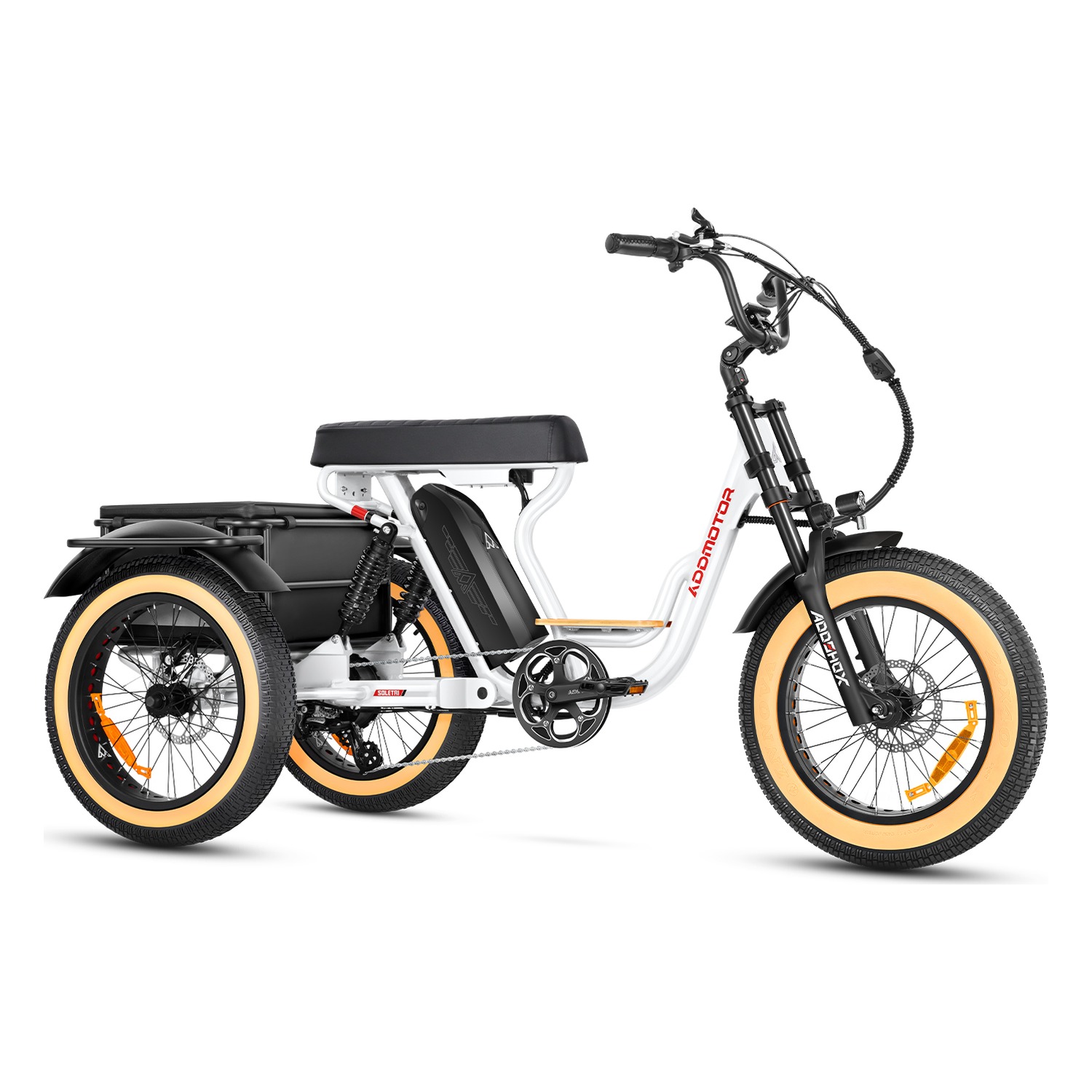

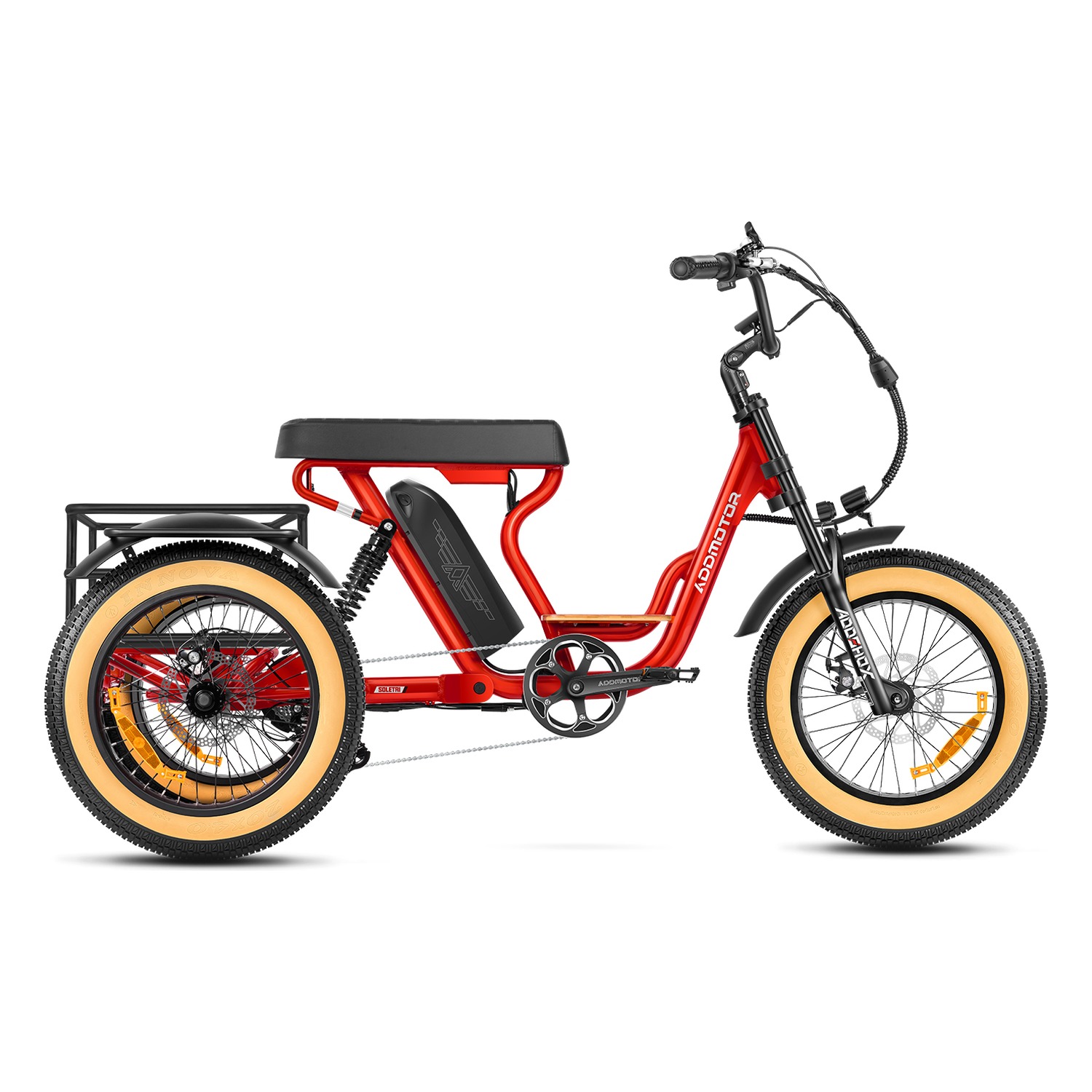

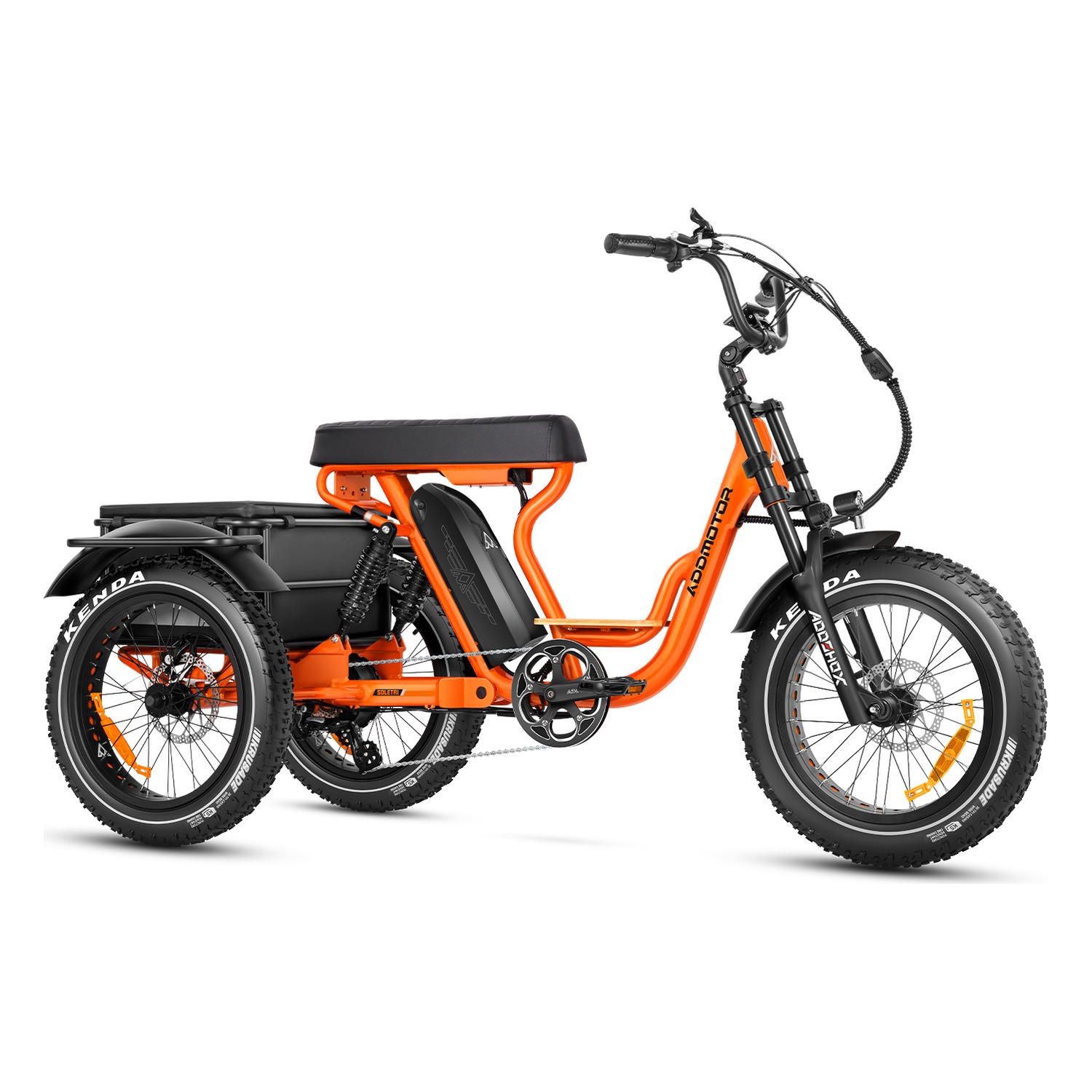

Addmotor Soletri II M-366X Etrike
The Addmotor Soletri II M-366X is a full-suspension electric trike built around an extra-long banana saddle that seats two adults.
A 48V 750W rear-mounted motor and a 48V 20Ah Samsung UL-certified battery deliver up to 85 miles per charge at pedal-assist level 1, and a torque sensor across 7 assist levels matches the power to your own effort. Addmotor rates it for a 350 lb rider plus 100 lbs of cargo.
The 17-inch step-through frame is built for easy mounting, paired with an ADDSHOX dual-crown oil-spring fork with 80mm of travel, Tektro Aries mechanical disc brakes on 180mm rotors with motor cutoff, a parking brake for holding it on a slope, and a rear differential so the back wheels turn at different speeds through a corner.
Kenda GIGAS puncture-resistant 20 x 4.0 fat tires, a 7-speed Shimano Altus drivetrain, aluminum front and rear fenders, and EB 2.0 lighting with turn signals and a brake light. Fits riders from 5 ft 2 in to 6 ft 2 in.
Technical
- Motor: 48V 750W rear-mounted
- Battery: 48V 20Ah Samsung cells, UL certified
- Range: up to 85 miles at pedal assist level 1
- Top speed: 20 mph
- Payload: 350 lb rider plus 100 lb cargo, 450 lbs total
- Certification: UL 2271 battery, UL certified taillight
- Charger: 48V 2.0A five-pin DC with auto magnetic connection
Performance
- Sensor: torque sensor, 7 levels of assist
- Gearing: Shimano Altus M310 7-speed, MF-TZ500-7 14 to 28 tooth
- Brakes: Tektro Aries mechanical disc, 180 mm rotors, four-finger levers with motor inhibitors
- Parking brake: yes
- Differential: yes
- Front fork: ADDSHOX 20 in oil spring dual-crown, 80 mm travel, preload adjust
- Frame: 6061 aluminum alloy step-through with wooden footrest
- Tires: Kenda GIGAS puncture-resistant, 20 x 4.0 in
- Rims: Addmotor aluminum double wall
- Cranks: alloy, 170 mm, 42 tooth with chain guard
- Throttle: half-twist with power-cut switch
- Display: Addmotor EB 2.0 multi-function LCD
- Controller: Addmotor EB 2.0 25A
- Lighting: 40 lumen headlight, EB 2.0 taillight with turn signals, brake and hazard
- Horn: electric, 108 dB
- Saddle: banana seat, 23 x 8.5 in, faux leather
Size and fit
- Rider height: 5 ft 2 in to 6 ft 2 in
- Total length: 76.7 in
- Total width: 32.7 in
- Wheelbase: 54 in
- Standover height: 17 in
- Seat height: 32.5 in
- Handlebar height: 42 in
- Rear basket: 20.5 x 16 x 9.5 in
Two-year limited warranty on frame, motor, battery and controller. Addmotor also sells this trike as the Herotri II M-365X, mechanically identical but with a sportier 24 inch high-step frame.
